| BRAND | Bailey-Mackey |
| Product | Type 1392P No. 11A9047150,obsolete,replacement by Type 1392 |
| Internal code | IMP1112907 |
| Weight | 1 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Bailey & Mackey - Type 1392P No. 11A9047150,obsolete,replacement by Type 1392 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in Bulgaria Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

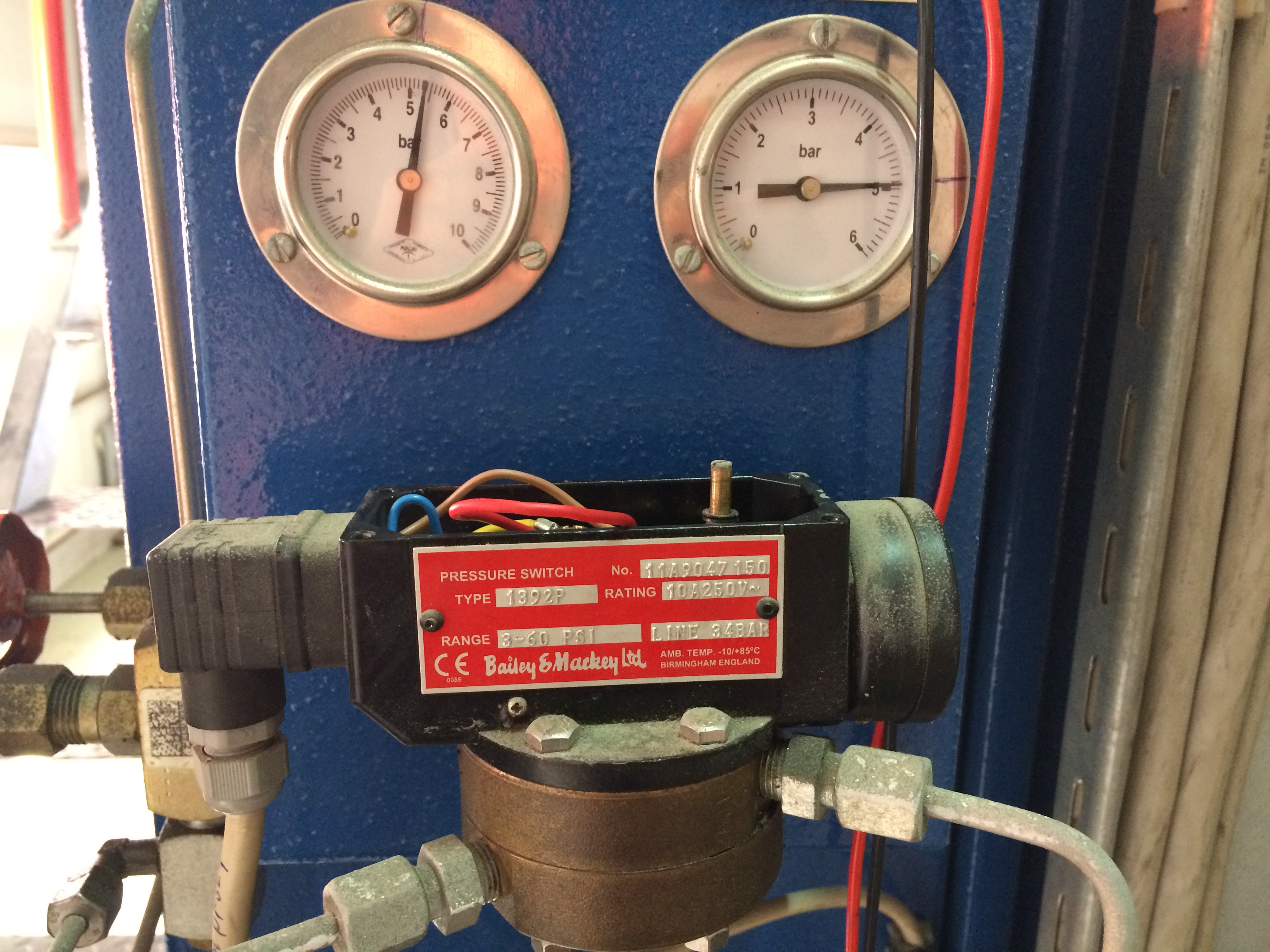

IMG_4223.jpg |
Превключвател за налягане
Pressure Switch (0588536062) Manual Reset Rising Pressure Range: 2 to 40 bar Set @ 2 bar rising pressure Overload Protected to 70 bar Process connection: 1/2"NPT Male x 1/4"NPT female Wetted parts: brass connection with Be Cu diaphragm and Nitrile Seal Fitted with Mounting Bracket Fitted with 4K7 OHM Resistor / Shorting Link Complete with 1m of 4 core cable
Range 2-40 Bar 2R 70 BarMax AMB.TEMP. -10/+85C Made in: Birmingham England
Диференциално налягане Switch
Differential Pressure Switch Range: 2 to 40 psi Process Connection: 1/4” NPT female Wetted parts: brass chambers with a beryllium copper diaphragm Seal: Nitrile Switch housing ingress protected to IP65 ½” NPT Conduit Adaptor Selected SPDT microswitch with reset differential 0.6 psi Max line pressure 34 bar CE marked C/W Mounting bracke
Диференциална превключвател на налягането
Pressure Switch Range: 2to 40 bar (Set at2bar Rising and marked on nameplate) Manual Reset for Rising Pressure Overload protection to 250 bar Process connection: ll2" NPT Male x ll4" NPT Female, Brass with a Beryllium Copper diaphragm Seal: Nitrile 'O' ring. Switch housing ingress protection to IP65. SPDT microswitch, suitable for 250V ac l0A and fitted with a 4K7 ohm resistor and shorting link Electrical entry: Fitted lm cable, 4 core and gland As Drg 1381RQ13 Mounting bracket fitted. CE marked
Type 1392P Visual Setting Differential Pressure Switch Range: 0.2 to 4 bar Process Connection: 1/4” BSP female, parallel
Визуална настройка превключвател за диференциално налягане
pressure switch
Pressure Switch 5 A. 250 V. 207 Q, Rated Current: 5Amp, Ac Nominal Voltage:250Volt,Range: 5-160 PSI,P / Reducer Pve-16D , Serial 69153, 1/2 Npt
Range: -1 to BAR
Обхват на превключвателя за диференциално налягане:
Pressure Switch Range: 1 to 3 bar (Set at 1.4 bar Rising) Process connection: 7/8” BSP Male, 316 Stainless Steel flow through base, with a PTFE/Nitrile bonded diaphragm. Switch Cover Plastic coated
SWITCH,PRESSURE,ATEX,PRESSURE RANGE 3-14 BAR,DELUGE SYSTEM ZONE #1 TO ZONE #8,SERIES 5000,TYPE 5381,NOTIFICATION NUMBER11044079
Въведете 1381Q Превключвател за налягане като сериен номер 9256 {0 {6 Обхват: -1 до +1 Защитено от претоварване до 28 бара Връзка на процеса: 112 „BSP мъжки, паралелен Омокрени части: месингова връзка с берилиева медна диафрагма Уплътнение: Нитрил Проникване на корпуса на превключвателя защитен към Lp65 SPDT микропревключвател номинален 10A @250V ac С маркировка CE Наличностен код: 52A23
STLESS STEEL PROTECTION DISC, SPARE PART FOR FLOKKULLANT REGIONS PRESSURE SWITCHES
PTFE FLAT SEALING GASKET
BERYLLIUM COPPER DIAPHRAGM SPARE PART FOR FLOKKULLANT REGIONS PRESSURE SWITCHES
Налягане 0,2 - 4bar.
SWITCH ASSEMBLED IN BRACKET, SPARE PART FOR FLOKKULLANT REGIONS PRESSURE SWITCHES
water flow switch, #0380323003, type SPDT, model 1382, rating 15 amp, 250V range 2-40 psi.
(Type 14P Pressure Switch Range: 0.4 to 4 bar Process Connection: 1/8” BSP male, taper Wetted parts: brass connection with a beryllium copper diaphragm Seal: Nitrile Electrical Connection: 4-pin plug & socket SPDT microswitch)
sensor temp.200°c,7 à 8 bars
Превключвател за налягане
Pressure Switch Range: 0.2 – 4 bar Process Connection: 1/4” BSP male, parallel Wetted parts: brass connection with a beryllium copper diaphragm Seal: PTFE Switch housing ingress protected to IP65 SPDT microswitch rated 10A @ 250V ac CE marked
Диференциално налягане Switch
